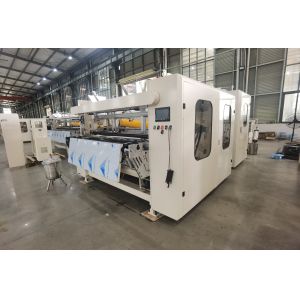

XY-TQ-B Good quality glue lamination small toilet paper roll making machine kitchen towel rewinding machine
Professional Kitchen Roll Machine – Trusted by South American Suppliers
Compact Kitchen Towel Rewinding Machine – Perfect for Small-Scale Producers
Outline
This high-performance machine features a core feeding unit capable of processing materials both with and without cores. The production flow begins with jumbo rolls undergoing full or edge embossing, followed by perforation, end-cutting, and tail gluing to form finished logs. These logs are then ready for integration with downstream cutting and packaging machines to produce market-ready products.
Operated via PLC-controlled touchscreen, the system delivers fully automated processing for ease of operation and reduced labor costs. Custom configurations are available to meet specific client requirements.
Key Advantages:
- Dual-mode core processing (with/without core)
- Integrated embossing (full/edge), perforation, and gluing
- Seamless compatibility with cutting/packaging equipment
- User-friendly PLC + touchscreen automation
- Customizable designs
The production process is: Unreeling — Embossing — Perforating— Lamination— Rewinding— Tail-gluing— Edge trimming---Automatic core loading.
Functions and Features --- Wall Type Automatic Rewinding Machine
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Product Parameters
Technical data:
| Jumbo roll max width | 1850mm (Other size can be specified) |
| Jumbo roll diameter | Φ1200mm |
| Jumbo roll inner core diameter | 3inches(76.2mm) |
| Finish product diameter | Φ70-φ280mm |
| Finish product Inner core diameter | φ38-φ76mm |
| Perforation distance | 120-150mm |
| Production speed | 180-230m/min |
| Parameter set | HMI, Touch Screen |
| Pneumatic system | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) |
| Unwinding transmission | Variable stepless speed regulation |
| Rewinding Unit | With core or coreless |
Two independent jumbo roll stands
Steel To Rubber Embossing Device

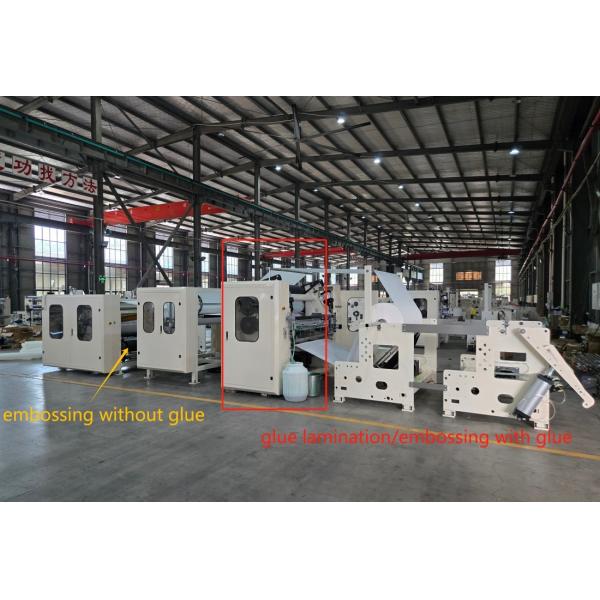

Glue Lamination Device
This device is optional, and it often used in kitchen towel and maxi roll. To make paper with higher water absorption.
Accumulator for glue laminated paper
It is for glue lamination continue running, and guarantee all paper with glue.

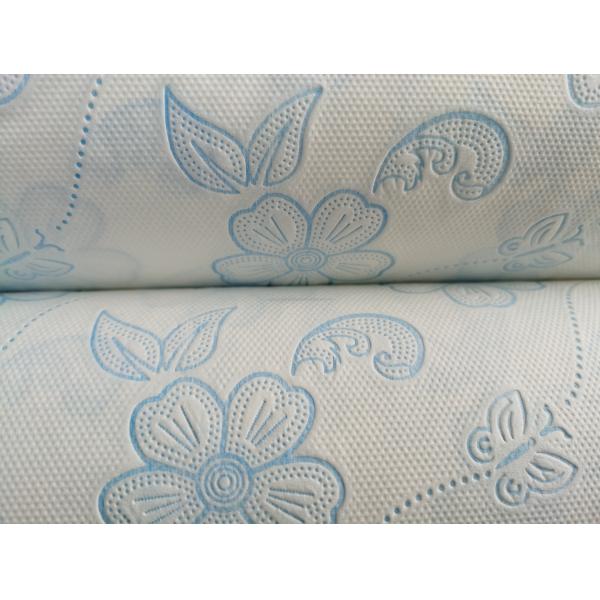

Finished product
Automatic Glue Lamination Maxi Roll Kitchen Towel Machine Production Line
There are four machines in this production line.
1) XY-TQ-B Full automatic toilet paper making machine
High speed:230 meters/minute Capacity for one day: about 2 Tons(about 20,000 rolls/8 hours)
2) XY-AI-500 Automatic maxi roll band saw cutting machine
Capacity: 15-30 rolls/min Cutting diameter:150-280mm
3) XY-TN-269 Automatic maxi roll shrink packing machine Capacity: 10-20 bags/min
4) Optional: XY-SD-B Automatic Paper Roll Core Making Machine
Capacity: 10-20 m/min
